安裝導電環 Slip ring installation

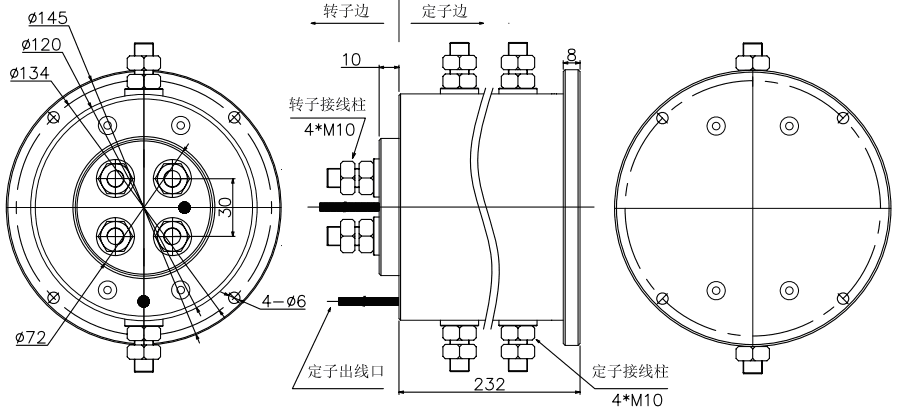

  如圖所示：將導電環裝在傳動軸需要的位置，用轉子上四個

緊定螺絲固定。定子部分通過止轉片與設備固定部位連接。

   As shown on the right picture，position the slip ring in the

 desired location and tighten it to the shaft by four set screws.

 Anti-Rotation tap is used for connecting the stator of slip

 ring with the stationary member of euipment.

 注意事項 CAUTION:

 因?yàn)?a id="http://06187.cn/" name="http://06187.cn/">滑環和客戶具體應用之間可能存在機械誤差，不推薦在

滑環兩頭強行緊固安裝，否則可能導致過早損傷滑環。

 If possible geometric mismatching between the customer's

application and the slip ring,'hard mouting'of both ends of the slip ring is not recommended and may cause premature failure.

  把導線排好并做必要的連接，防止導線妨礙滑環的自由旋轉。

  Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.
